NOISEFIGHTERS MAX14 ARTICULATING METAL J-ARM FOR THE PVS-14

Description

Description

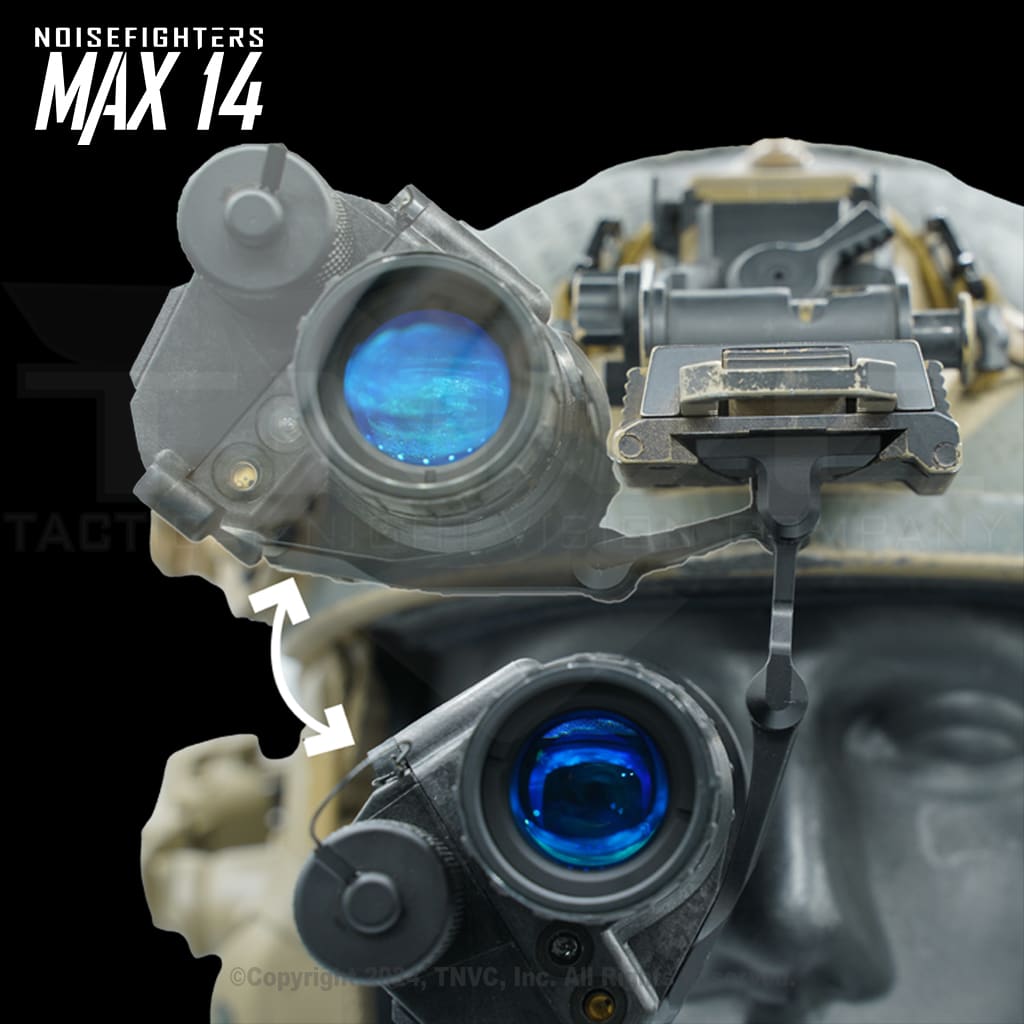

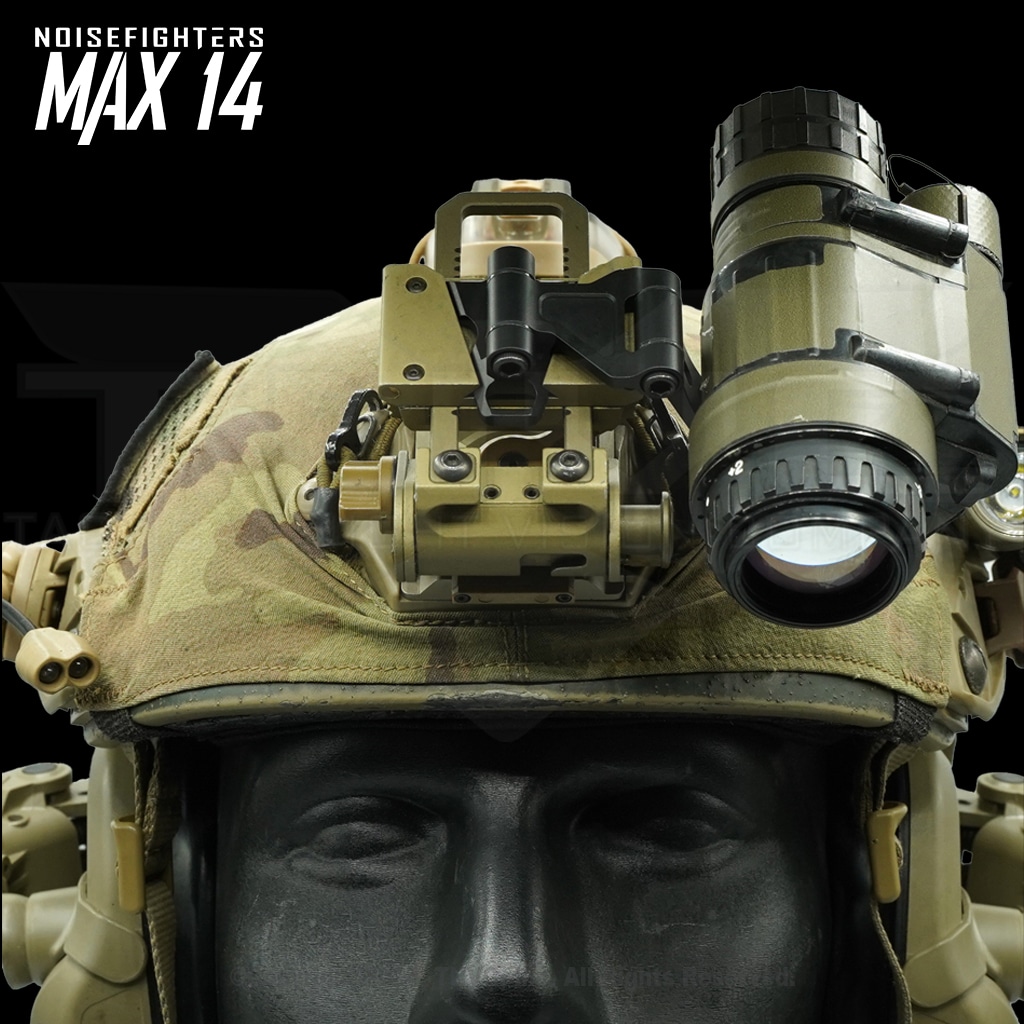

MAX14™ is a rigid, incredibly lightweight, and all-metal night vision J-arm for both the MILSPEC AN/PVS-14 and other monoculars that accept a MILSPEC j-arm such as the AB Night Vision RVM-14 and Nocturn Industries™ UANVM “TANTO” monocular. It includes a rotating knuckle which provides a tight stow against the helmet and also allows the monocular to be temporarily swung away from the eye. At 1.0 oz total, it weighs half as much as a polymer milspec J-Arm, yet its structure is composed entirely of the highest-performing 7075-T6 aluminum alloy for industry-leading durability.

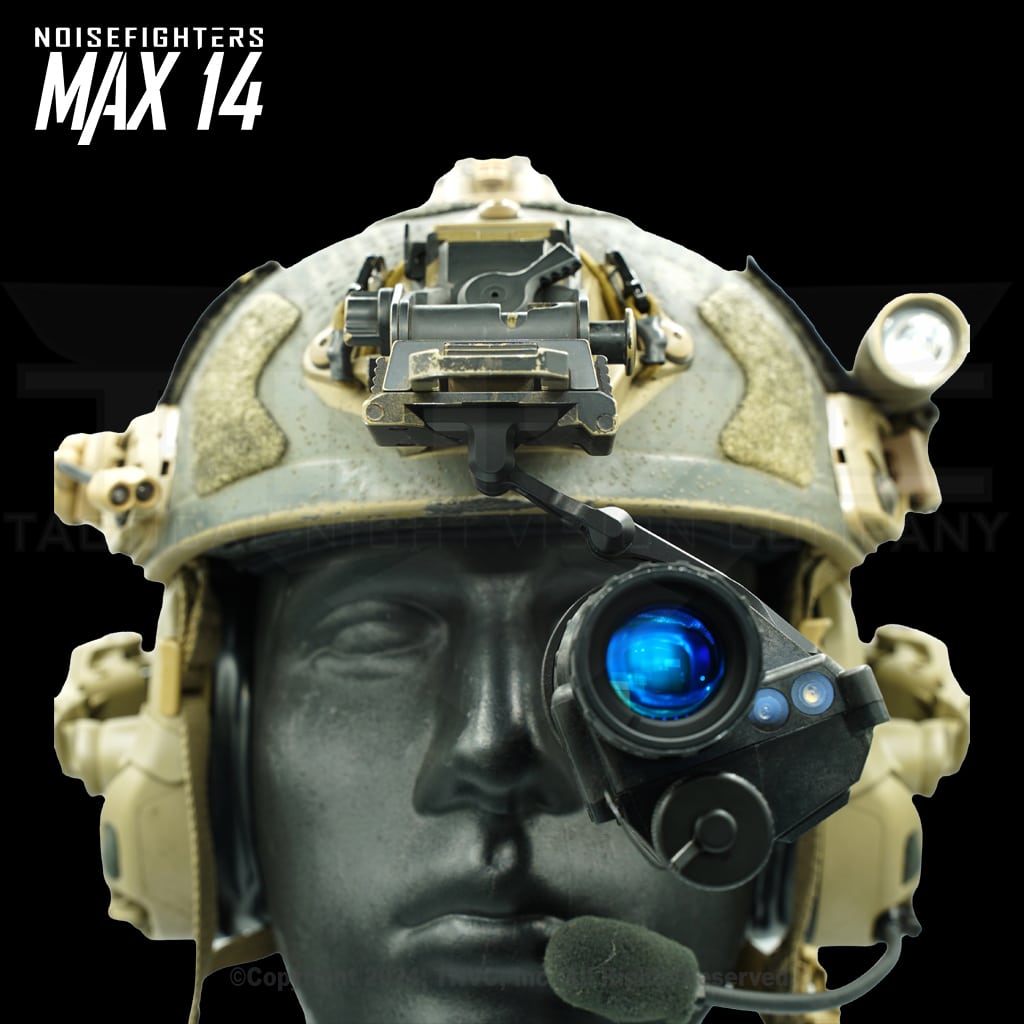

An intuitive, friction-based mechanism allows users to swing their monocular in front of either the left or right eye and perfectly adjust for interpupillary distance, while a slight rearward sweep of the inner arm helps position the monocular eyepiece closer to one's eye and provides greater compatibility for those with larger helmets. A tether point is also featured on the rear to keep the entire system secure. Attach a monocular, snap the complete assembly into a dovetail-style helmet mount like the Wilcox® G24, and enjoy. Introducing the new industry standard in night vision monocular mounting.

A no-questions-asked, transferable lifetime warranty is included. The Noisefighters MAX14 is proudly made and assembled in the U.S.A. and was designed by a Marine Corps combat veteran of Iraq and Afghanistan.

Considerations to account for when using this product:

This arm is NOT COMPATIBLE with USGI bayonet helmet mounts such as the legacy Norotos Rhino or Wilcox G11. You MUST HAVE a dovetail helmet mount such as the Wilcox G24.

The USGI auto-shutoff system is not integrated. Users must manually turn off the monocular when articulating or flipping up and stowing equipment on top of the helmet.

SPECIFICATIONS:

COMPATIBLE WITH: MILSPEC AN/PVS-14 MONOCULAR, NOCTURN INDUSTRIES UANVM “TANTO” (A SEPARATE ADAPTER IS INCLUDED IN ORDER TO FIT THIS DEVICE), PHOTONIS VYPER-14 CHASSIS FOR AN/PVS-14 MONOCULAR, AB NIGHT VISION MOD3 MONOCULAR (AUTOGAIN VERSION ONLY), AB NIGHT VISION RVM-14, KNIGHT’S ARMAMENT M-14 ALLOY CHASSIS FOR AN/PVS-14 MONOCULAR,

HELMET MOUNTING COMPATIBILITY: DOVETAIL

INTERPUPILLARY DISTANCE (IPD) COMPATIBILITY: 55 – 75mm

TOTAL ASSEMBLED WEIGHT OF THIS PRODUCT: 1.0 OZ / 28 g

DIMENSIONS: 3.5 x 1 x 1.25″

WARRANTY: LIFETIME, TRANSFERABLE

NIGHT VISION SHOWN IN PICTURES IS NOT INCLUDED

MADE AND ASSEMBLED IN THE U.S.A. BY A DISABLED U.S.M.C. COMBAT VETERAN OWNED COMPANY

THIS ITEM IS SUBJECT TO EXPORT ADMINISTRATION REGULATIONS (EAR)
