Wilcox G24 Mount

Rated 0 out of 5
(be the first to review)

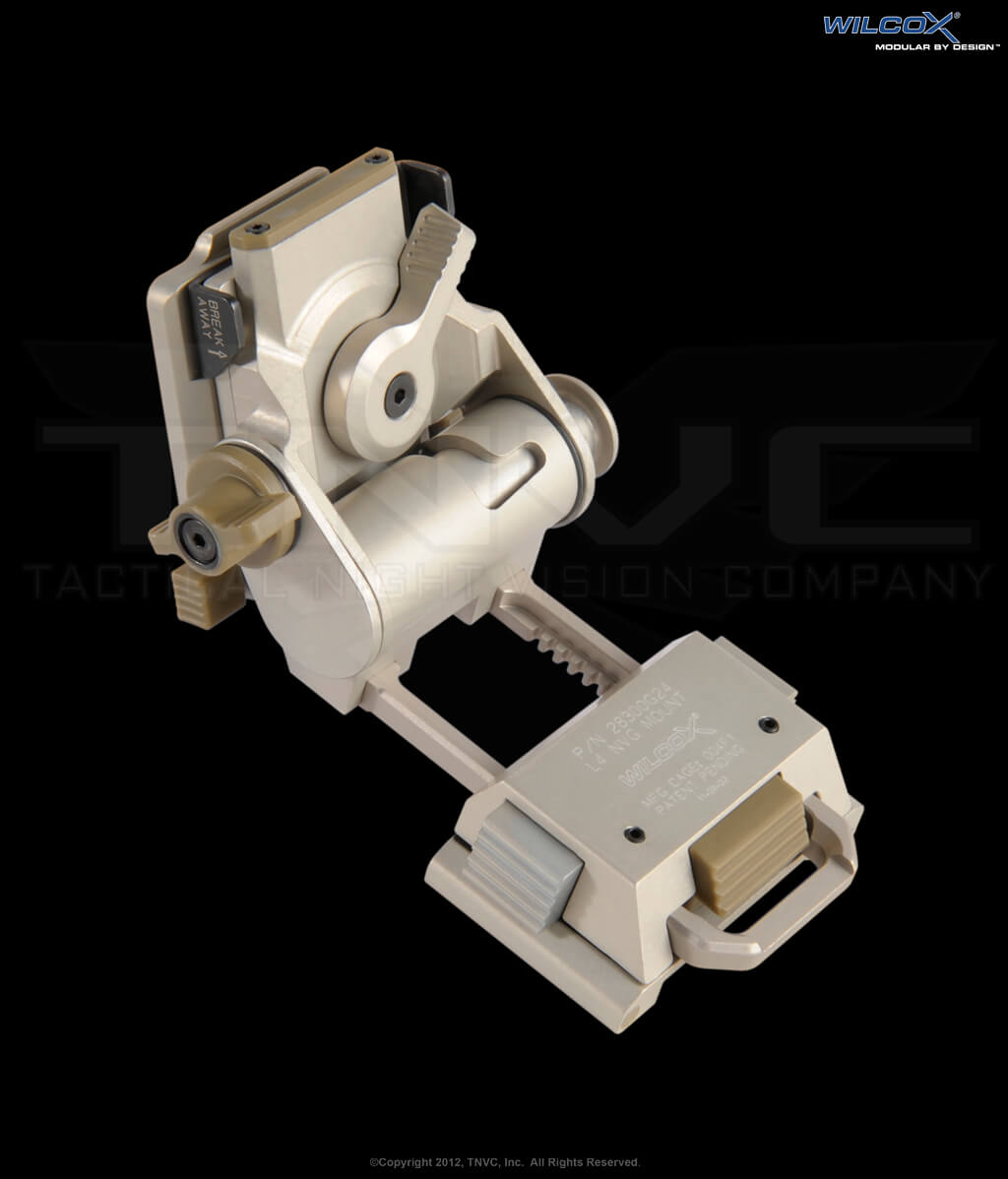

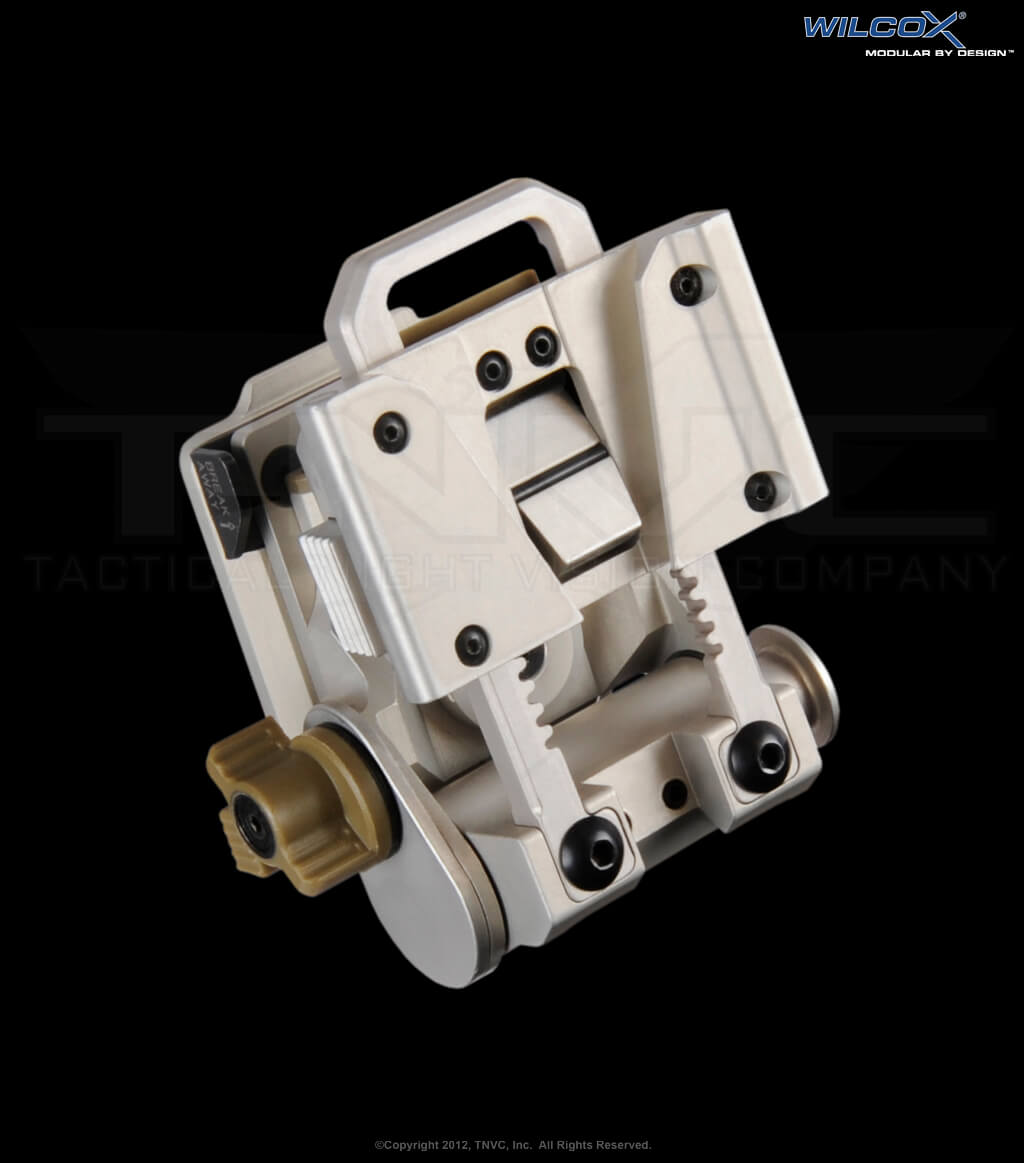

Wilcox L4 G24 Mount w/ Low Profile Breakaway Base

SKU: WLCX-L4G24 Category: Brand:


Wilcox Industries designs some of the most sophisticated and user-centric night vision helmet mount systems available. The first reaction people tend to have is to balk at the price tag. Sure, it is expensive, but like everything: you get what you pay for. Wilcox helmet mounts are, literally, works of engineering art. They are designed with direct input from US Warfighters at the very tip of the sharp stick. These designs are refined until they reach perfection and are then masterfully crafted in Wilcox’s state-of-the-art manufacturing facility.

The Wilcox G24 Breakaway Lever Mount is designed to interface with various bracket-style NVG Shrouds. It allows the operator to attach an AN/PVS-7A or 7C night vision goggle to a helmet-mounted Ops-Core VAS Shroud, Standard US Army 1-Hole Shroud, or even a Norotos Universal Shroud. The G24 is one of the most universal mounts in the Wilcox line because it does not require a proprietary shroud. It does, however, retain the sought-after breakaway feature found on other Wilcox models. The breakaway feature allows the operator to preset the mount for a secure lock with the shroud or to allow it to break away under stress so as to prevent injury. Activities that could cause entanglement such as rappelling and fast roping or high speed operations where the NVG can bang into objects are a leading cause in neck and head injury to soldiers. The ability of the G24 to break free of the shroud under these conditions protects the user’s body and the NVG from severe injury or damage.

The Wilcox G24 is a features all the same adjustability features as the rest of the Wilcox line. If you cannot adjust the Wilcox mount to place your NVG’s in proper position, there is probably something wrong with your head!

Another great feature of the Wilcox G24 is that it cantilevers the NVG out in front of your head instead of over it (like the standard issue mounts). This reduces your profile and makes it easier to judge your height when entering and exiting vehicles or moving through windows and doorways.

Please note that Wilcox Mounts utilize a proprietary dovetail interface and are not compatible with USGI bayonet plugs. We carry the full line of Wilcox Interface Shoes that will retrofit your NVG system to be compatible with your Wilcox Mount. Wilcox manufacturers an Interface Shoe Adapter for just about every NVG system in use today. Please make sure you have the proper adapter when purchasing a Wilcox Mount.

Regardless of the benefits, we are still asked about the price. Our answer is always this: why would you want to mount your expensive NVG’s on the cheapest mount you can find? Wilcox has and continues to set the bar to which all other mounts are measured.

Export of Wilcox Industries products is controlled by the U.S. Department of Commerce under Export Administration Regulations (EAR) and the U.S. Department of State, Directorate of Defense Trade Controls Bureau of Political-Military Affairs, in accordance with 22 U.S.C. 2778-2780 of the Arms Export Control Act (AECA) and the International Traffic in Arms Regulations (ITAR). (22 CFR Parts 120-130) regulate Wilcox products.

It is unlawful to export, or attempt to export or otherwise transfer or sell any hardware or technical data or furnish any service to any foreign person, whether abroad or within the United States, for which a license or written approval of the U.S. Government is required, without first obtaining the required license or written approval from the Department of the U.S. Government having jurisdiction.

Manufacturer: Wilcox Industries
Materials: Lightweight Aerospace Aluminum, Polymer
Height Adjust: 0.900″ Total Vertical Travel
View to Stow: 130º Travel
Finite Tilt: 0-15º Tilt
Travel: 1.100″ Total Fore/Aft Travel
Auto On-Off: Applicable w/ Wilcox Metal Interface Shoes
Warranty: Lifetime Warranty
Accommodates: AN/PVS-7A, AN/PVS-7C (Direct Mount) AN/PVS-7B*, AN/PVS-14*, AN/PVS-15*, AN/PVS-18*, AN/PVS-21*, BNVD*, BNVD-G* (w/ Wilcox Interface Shoe)
Wilcox P/N: 28300G24-B (Black), 28300G24-T (Tan)
NSN: 5855-01-593-8375

Additional information

Weight 1 lbs
Dimensions 5 × 5 × 5 in
