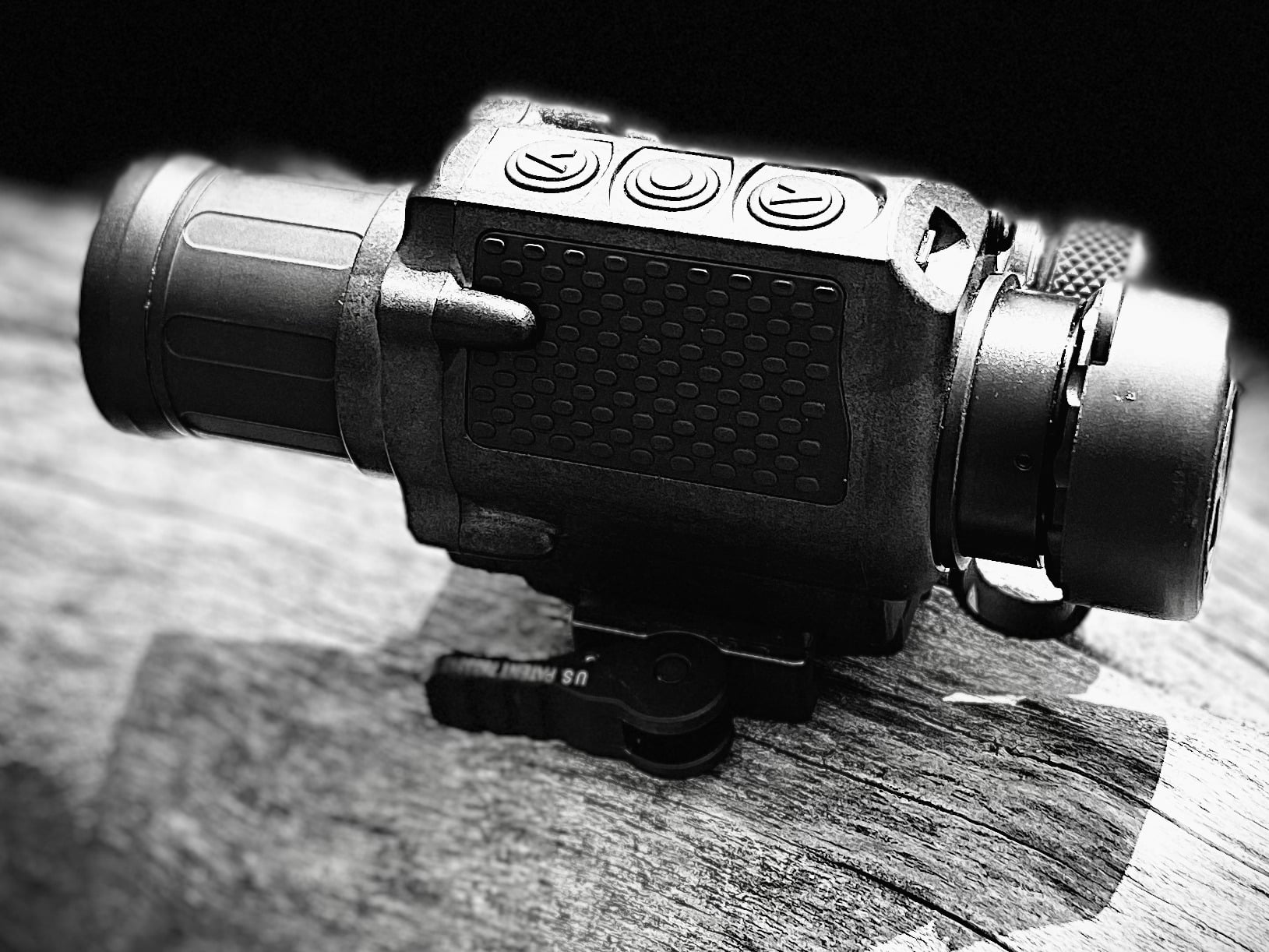

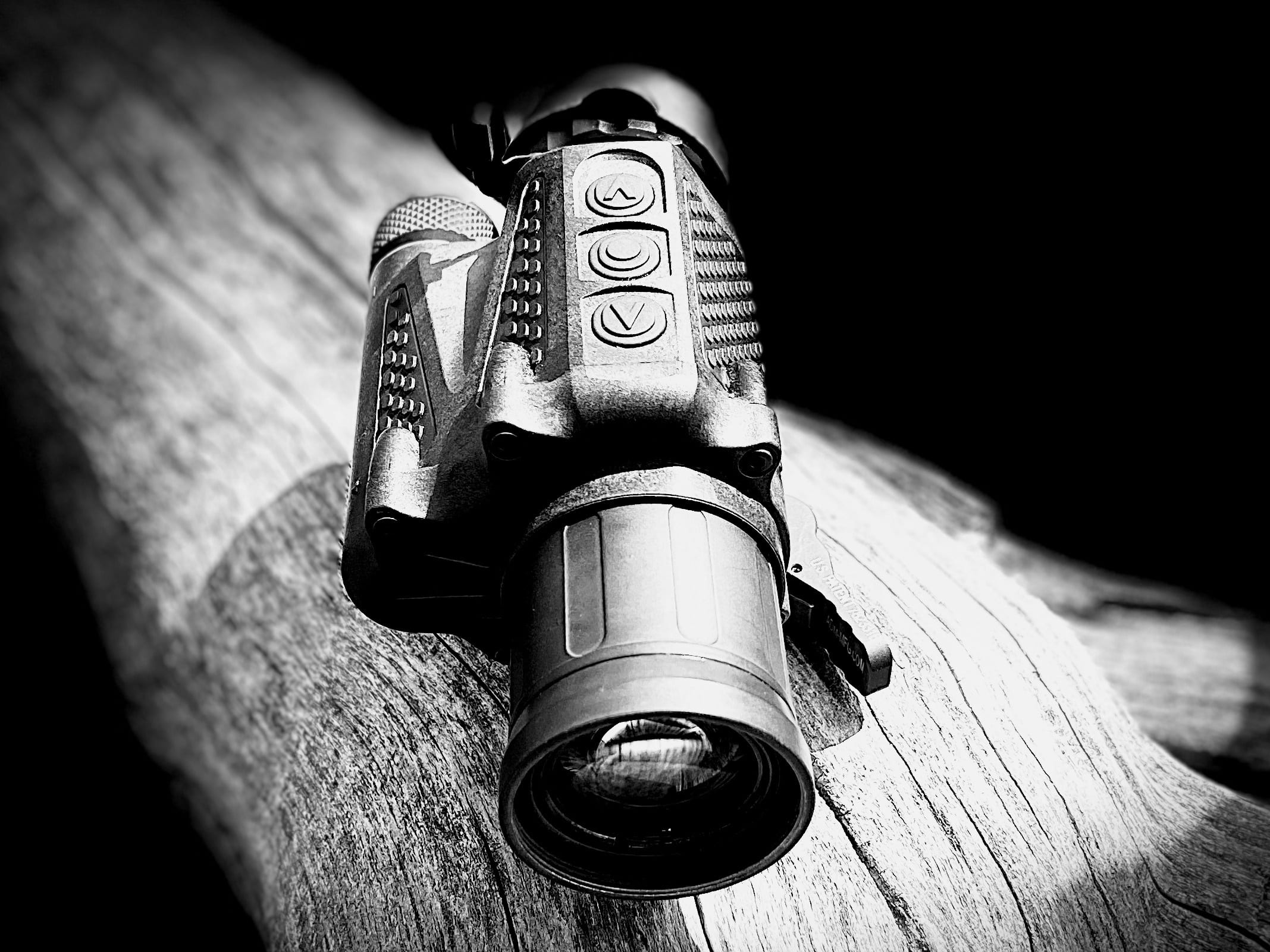

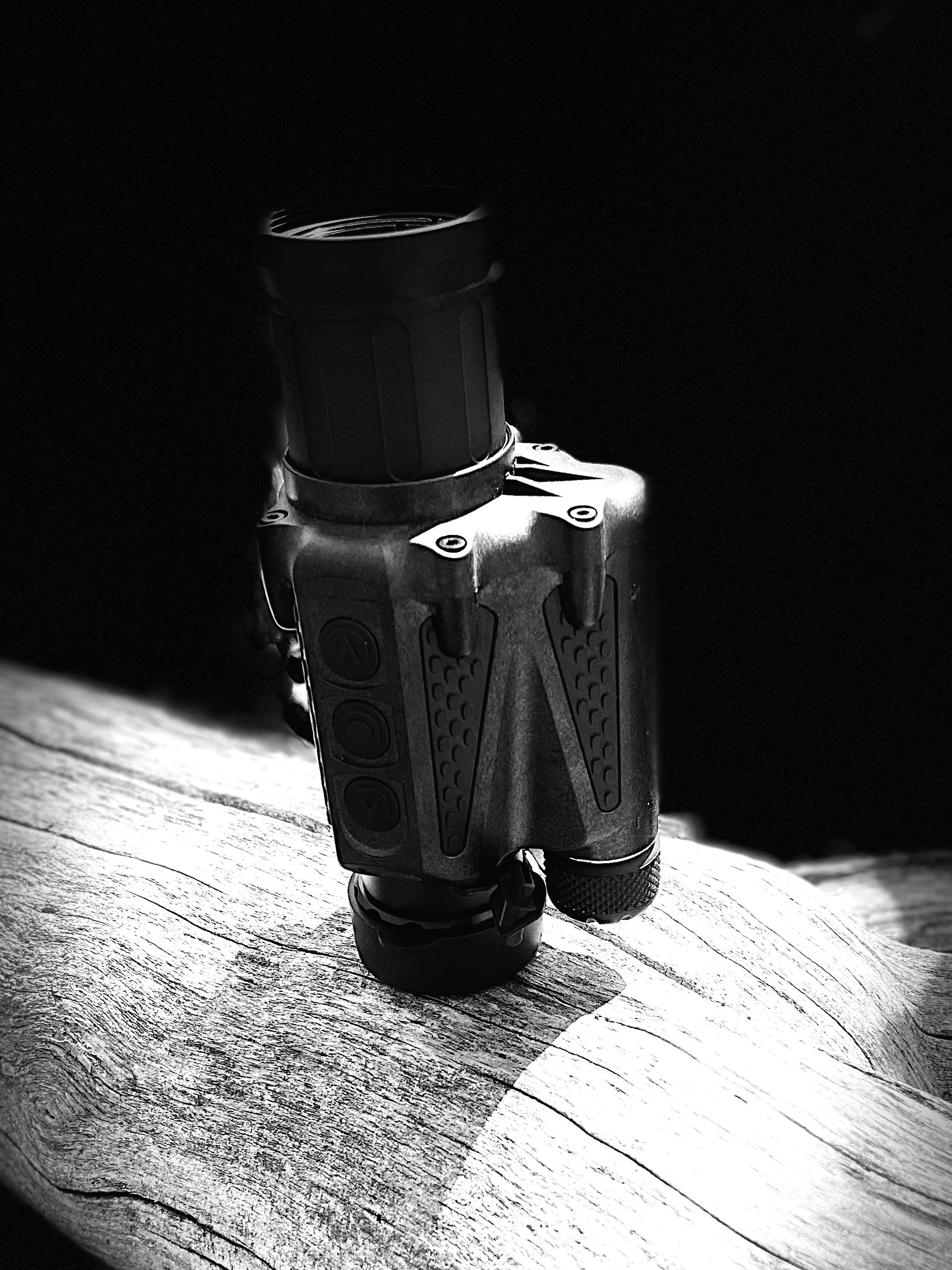

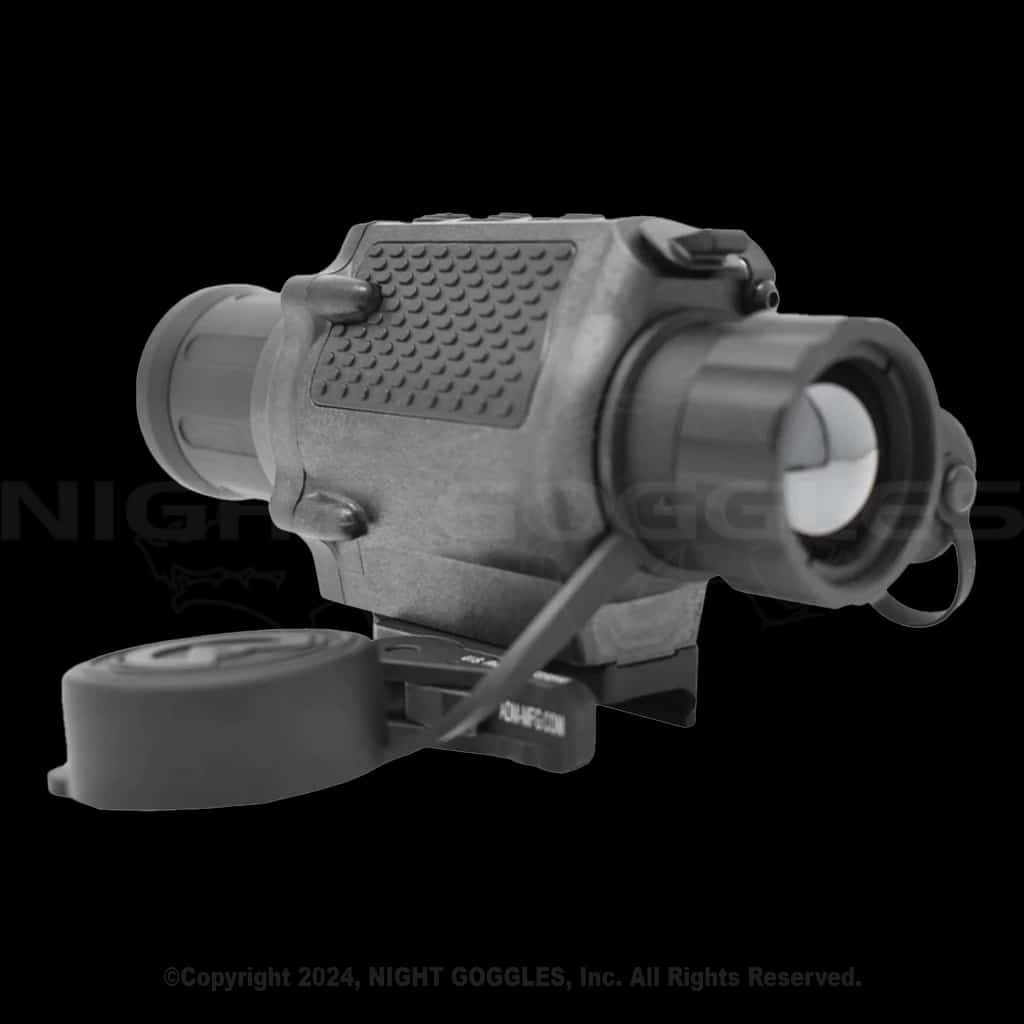

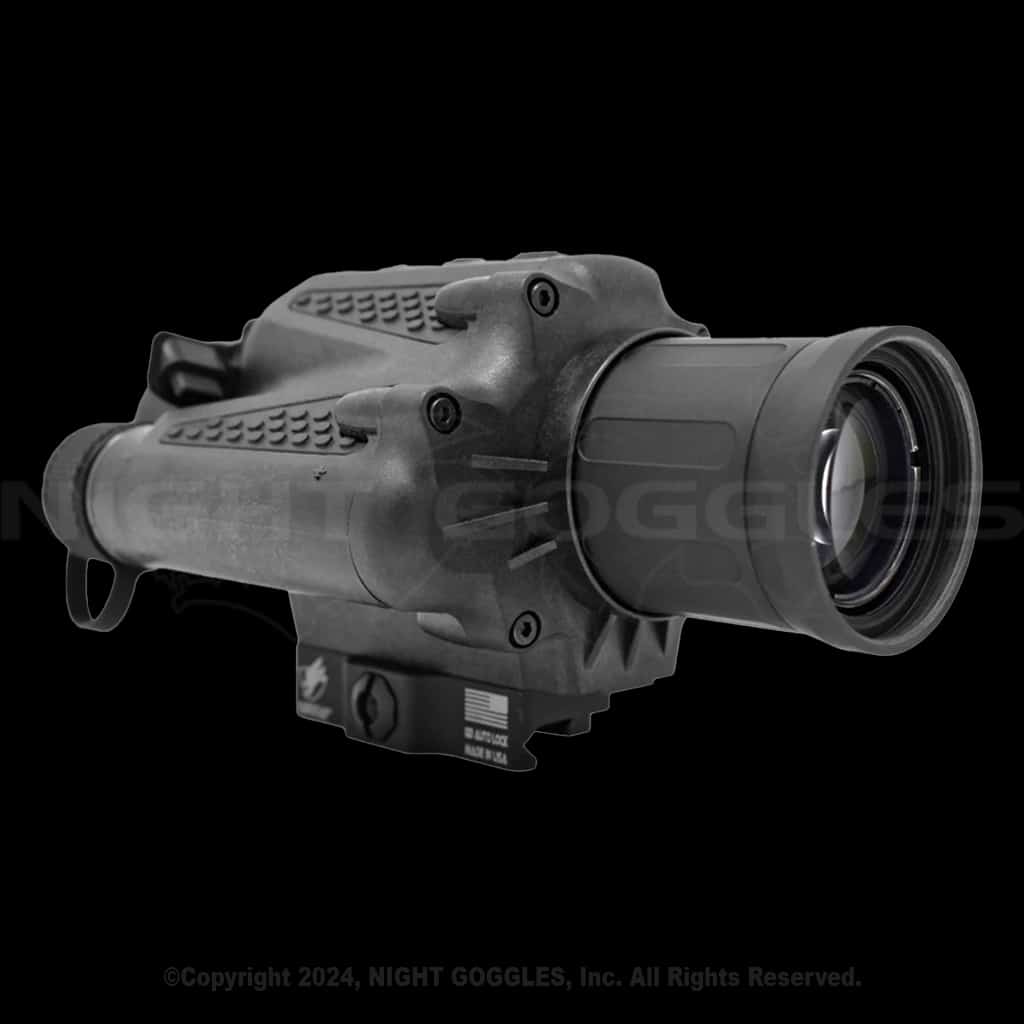

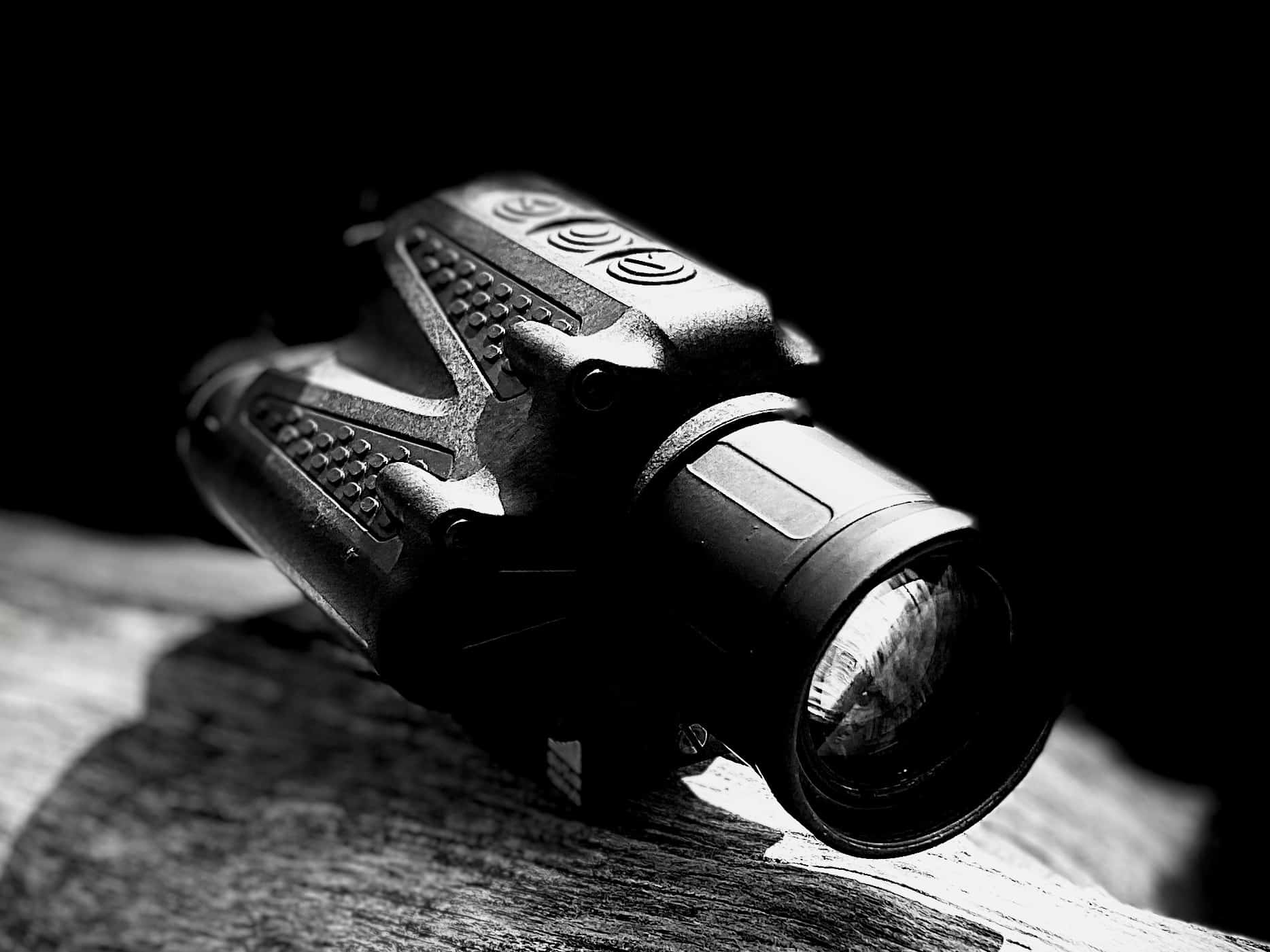

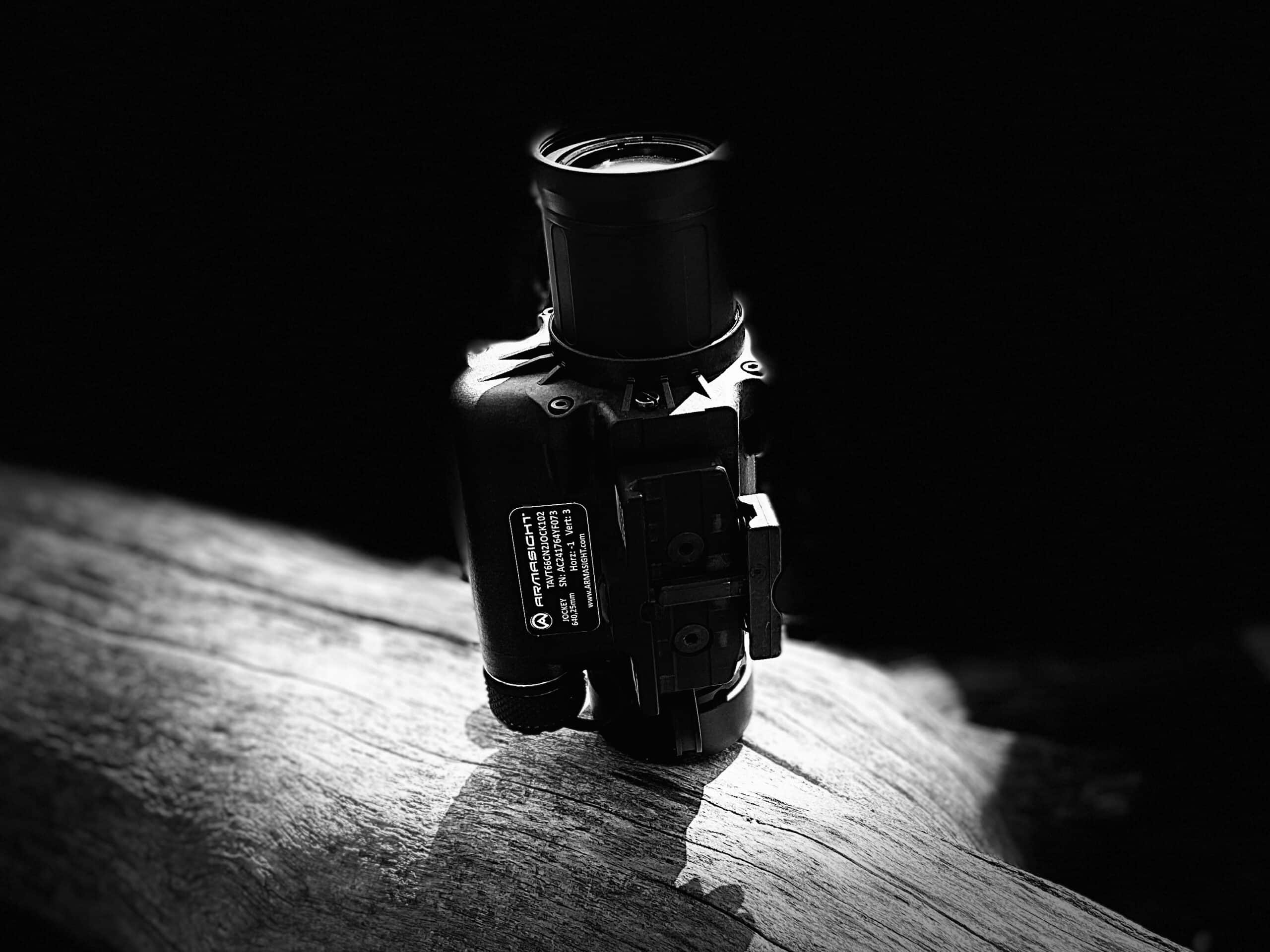

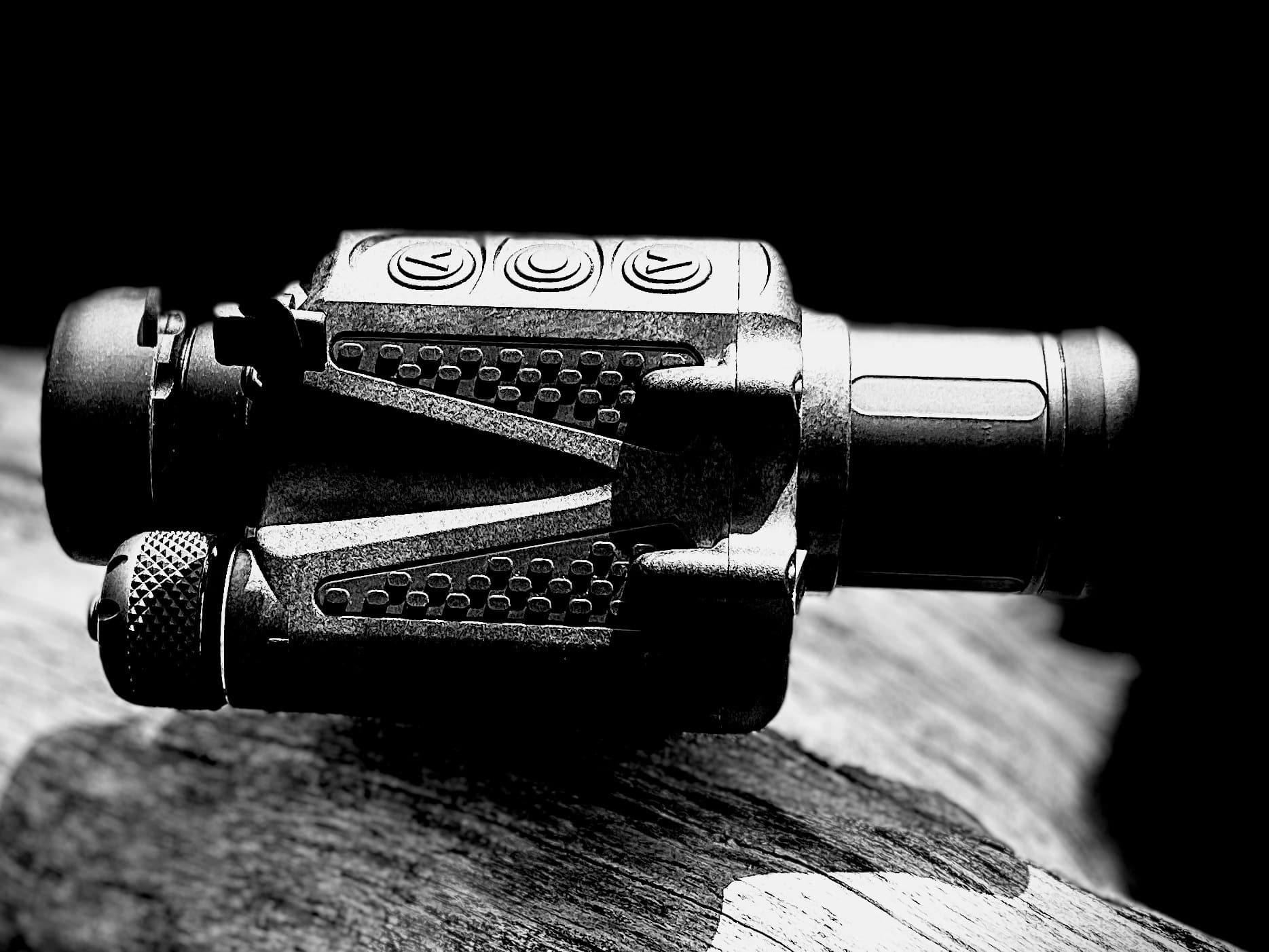

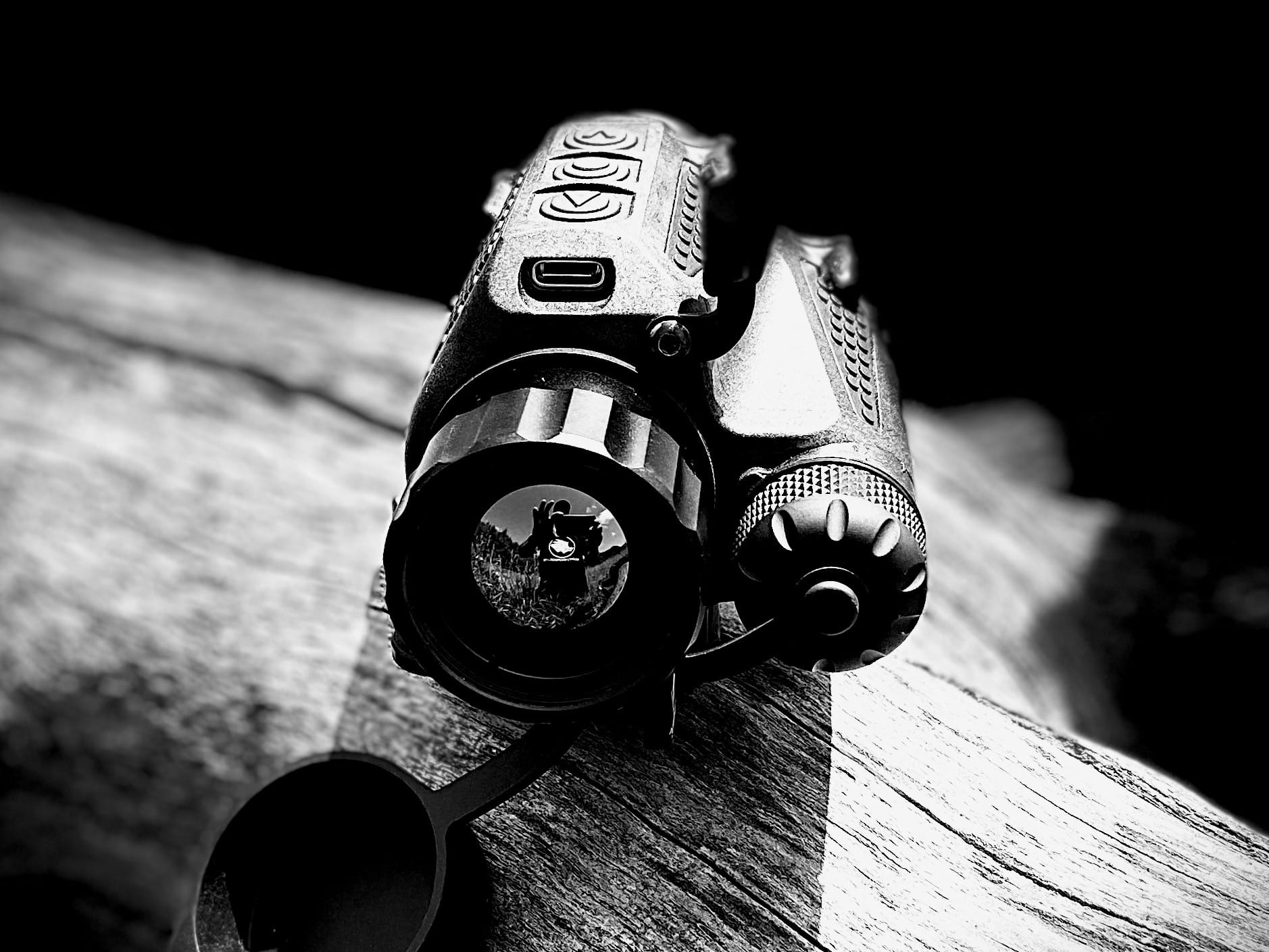

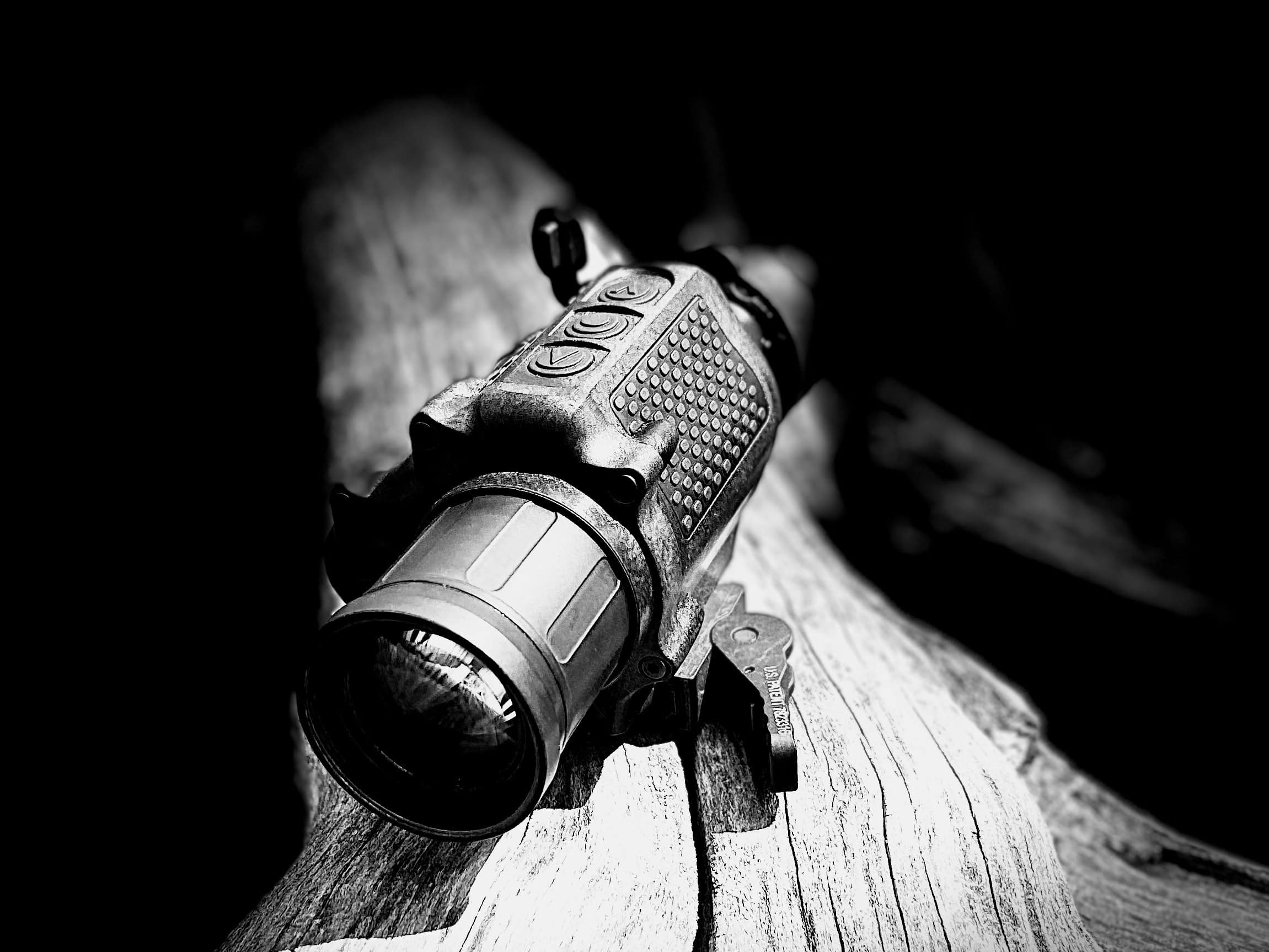

Armasight Jockey 640 Compact Thermal Clip-On

Rated 0 out of 5
(be the first to review)

$3,499.00

Jockey 640 Compact Thermal Clip-On for 1-6x day optics

In Stock

SKU: NG-ARMA-JOCKEY-640 Categories: , , Tags: , , , , Brand:

Description

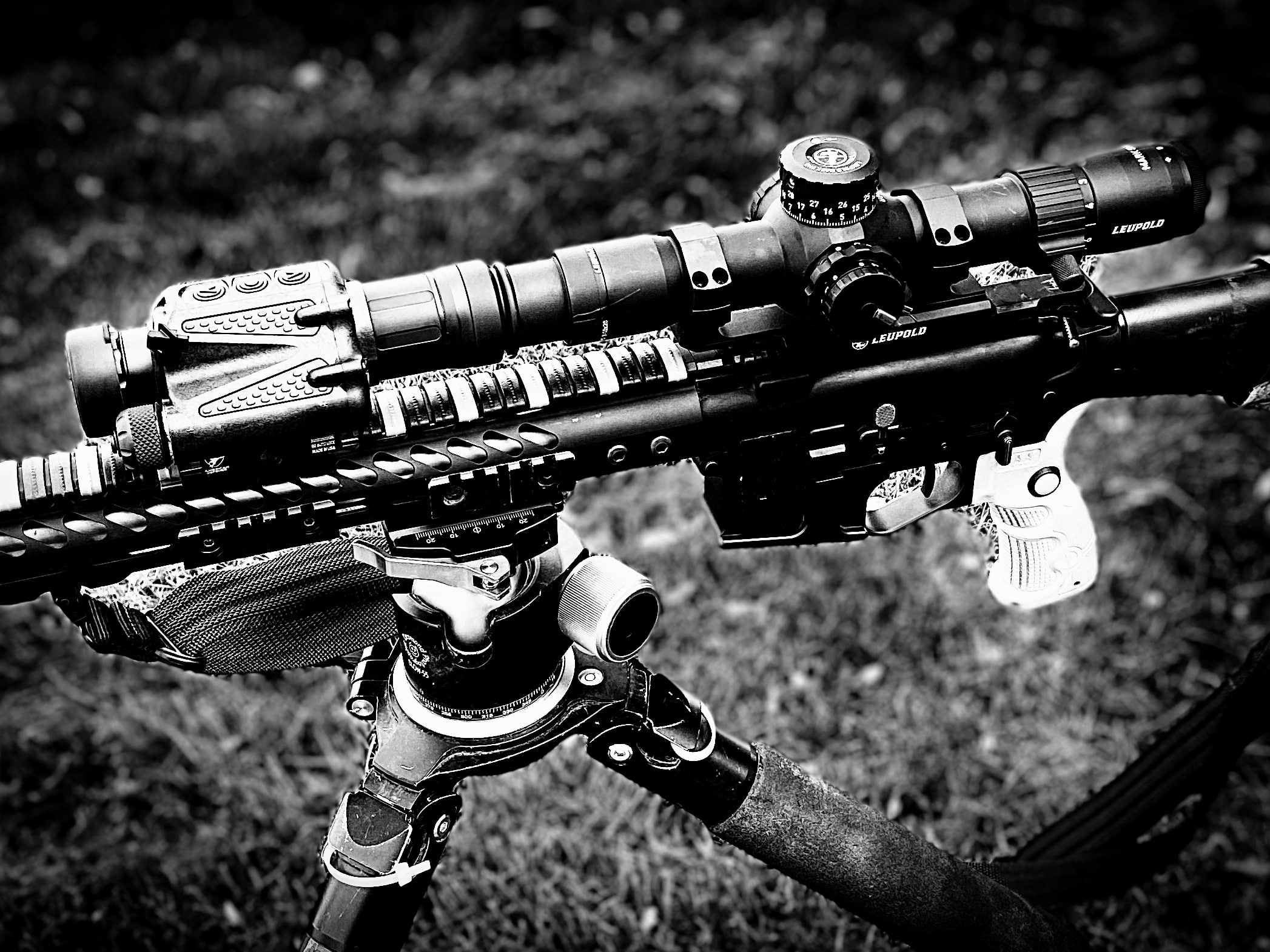

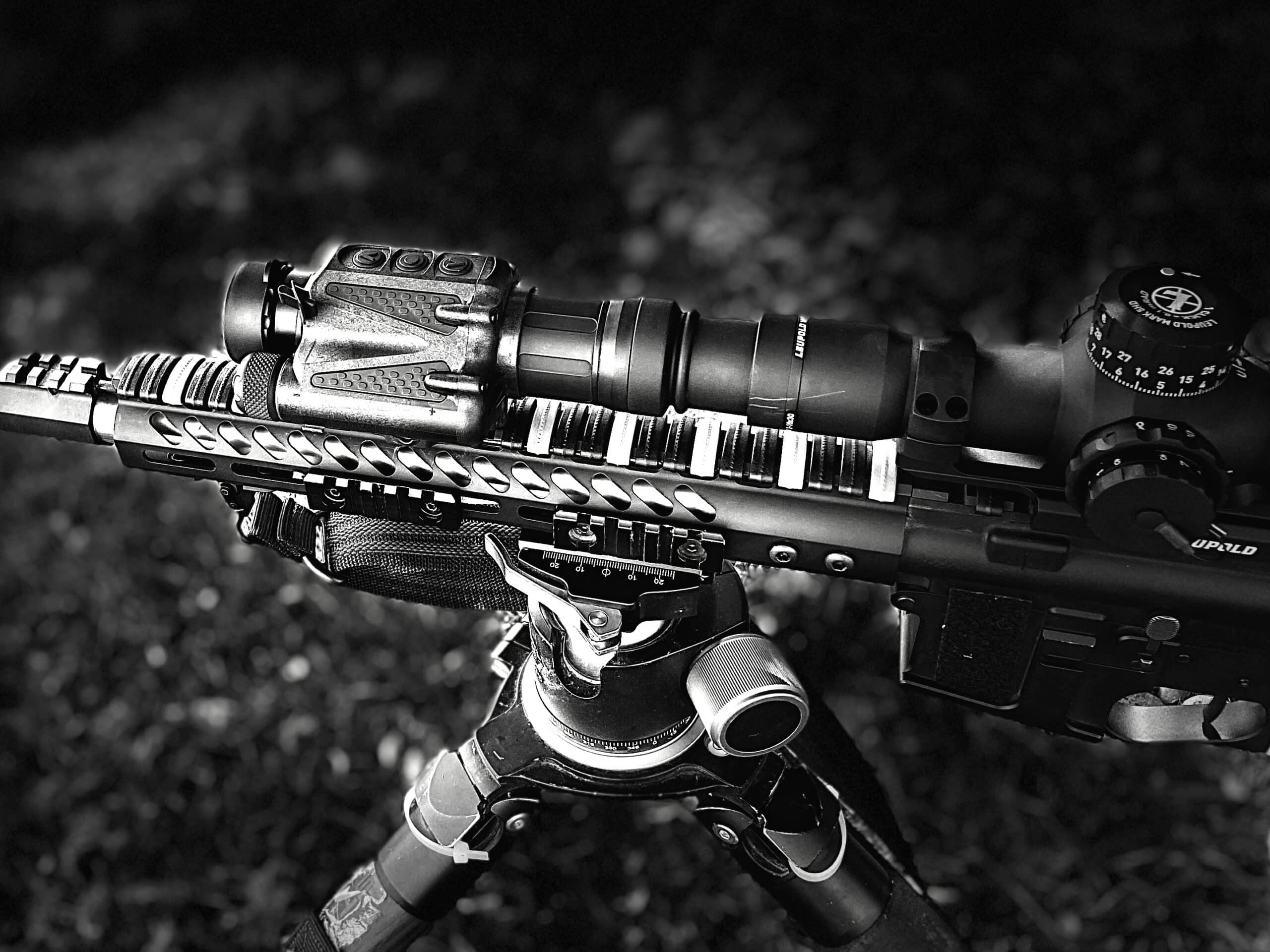

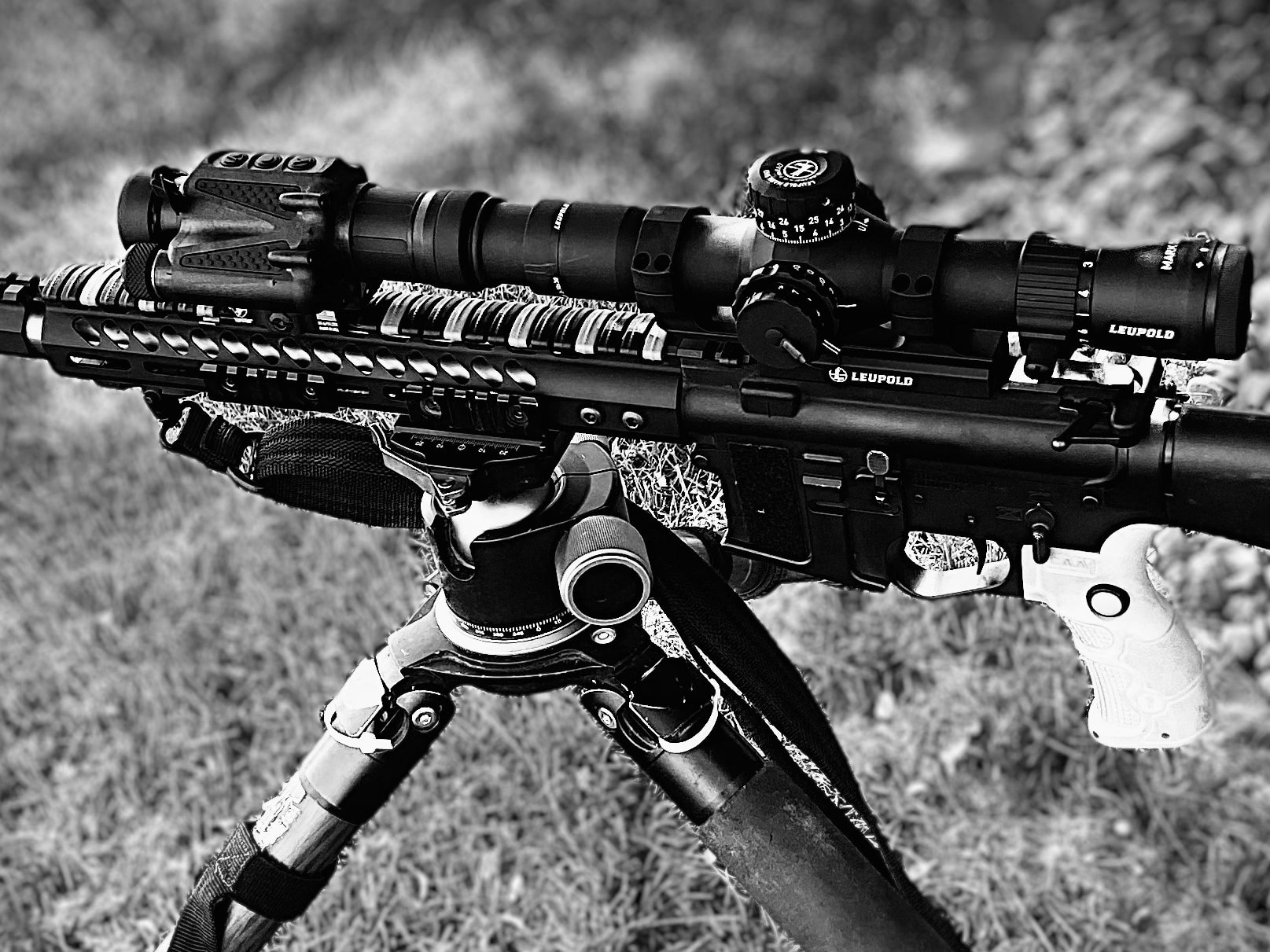

The Jockey 640 easily mounts in front of your existing 1-6x day scope working flawlessly with most optics under 5x magnification. The Jockey’s compact and lightweight design keeps your weapon nimble and responsive.

This unit boasts the high-performance ArmaCORE™ 640 thermal core, fast 60Hz frame rate for smooth operation and industry-best, outstanding visual acuity, based on Armasight’s Iron Wolf thermal technology platform. An extensive suite of features includes video and image capture, USB video stream, USB-C interface for viewing your recordings and photos on external devices such as computers or televisions. The Jockey 640 offers multiple color palettes, intuitive simple 3 button controls, a quick detach mount, and long battery life.



Features

  • Multiple Color Palettes
  • Intuitive 3-Button Controls
  • Reticle (for Digital Zoom)
  • 4 Hours Runtime at 20° C
  • Image Detail Enhancement
  • Simple Alignment for Digital Zoom Capabilities
  • Quick Detach Mount Included
  • Recoil rating up to .308 Winchester (.308, 300 Blackout, .22 – .250, .243, 6.5 Creedmoor)
  • Video Recording & Image Capture
  • USB Video Stream
  • USB-C Interface for External USB power sources
  • Reticle ON/OFF Selection
  • Battery Status Indicator
  • ULTEM Composite Body and Ergonomic Design
  • Designed and Assembled in the USA from U.S. and Global Components



Package Includes

  • Jockey 640 Compact Thermal Clip-On
  • Quick Detach Mount
  • USB-C Cable
  • Light Suppressor
  • Thermal Zeroing Target
  • 2 × CR123A Battery
  • USB Cable
  • Lens Cloth
  • Soft Case
  • Product Manual
Specifications
Detector Type: ArmaCORE™ 640 x 480 12um Thermal Core
Refresh Rate: 60 Hz
Thermal Sensitivity: NETD < 40mK
Detection Range: 932m on a Human Sized Target
Recognition Range: 233m on a Human Sized Target
Identification Range: 146m on a Human Sized Target
Exit Pupil: 25mm
Field of View: 17.6° x 13.2°
Optical Magnification: 1x unity (recommended for daytime optics with 1x – 6x magnification)
Digital Zoom: 1x – 4x
Display: XGA (1024 x 768) OLED
Wireless: None
Graphics: Active On-Screen Graphics and Iconology
Recoil Rating: Up to .308 Winchester (.308, 300 Blackout, .22 – .250, .243, 6.5 Creedmoor)
Lens System: F/1.00; 25mm manual focus
Rear Collimator: f38mm
Diopter Adjustment: N/A
Power Supply: 2 x CR123A (3V) or 1 x 16650 (3V)
Battery Life: 4 hours at 20° C
Memory: 4 Hours of Video
Image Processing: Digital Enhancement
Environmental Rating: IP67
Operating Temperature: -40° C to +50° C (-40° F to + 122° F)
Dimensions: 174 x 68 x 66mm / 6.8 x 2.7 x 2.4in
Weight: 384g / 0.85lbs
Warranty: 3 years w/ registration
Color: Black



Additional information

Weight1 lbs
Dimensions7 × 3 × 3 in
