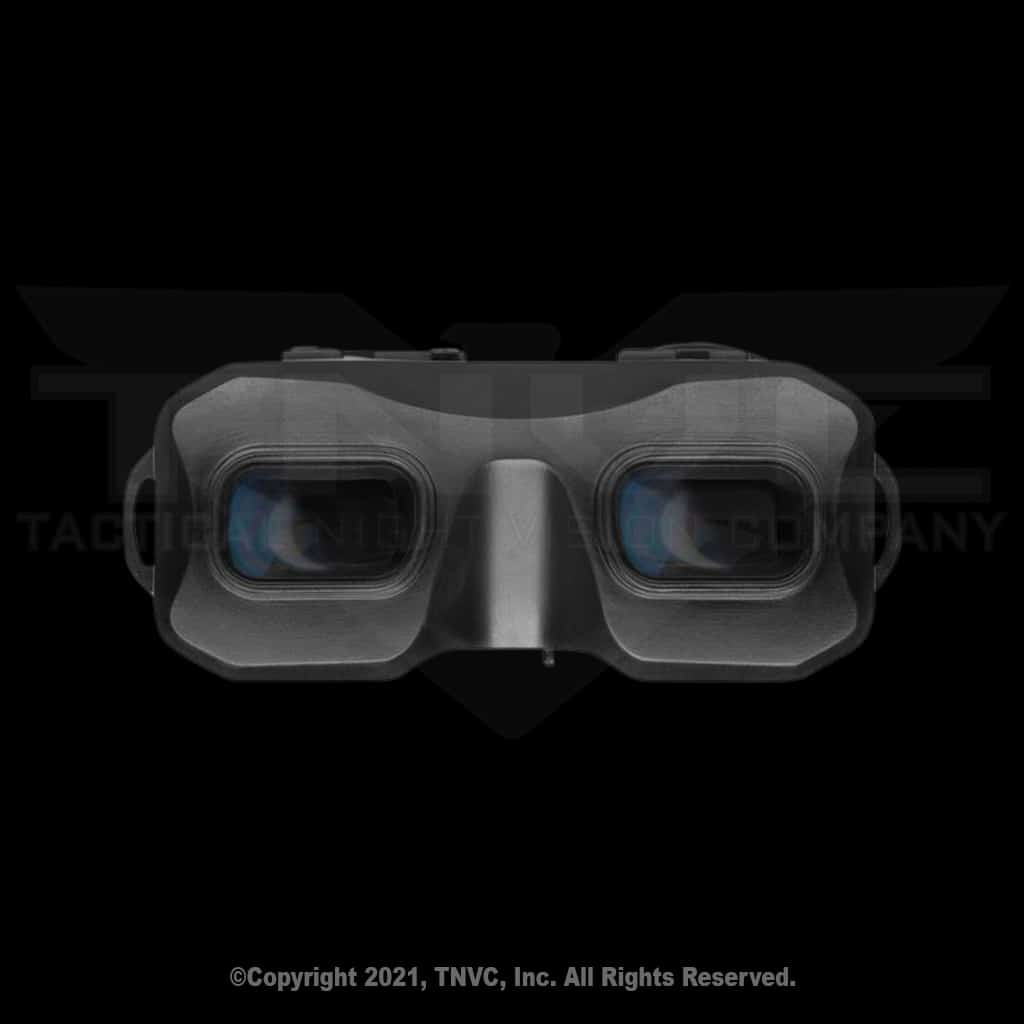

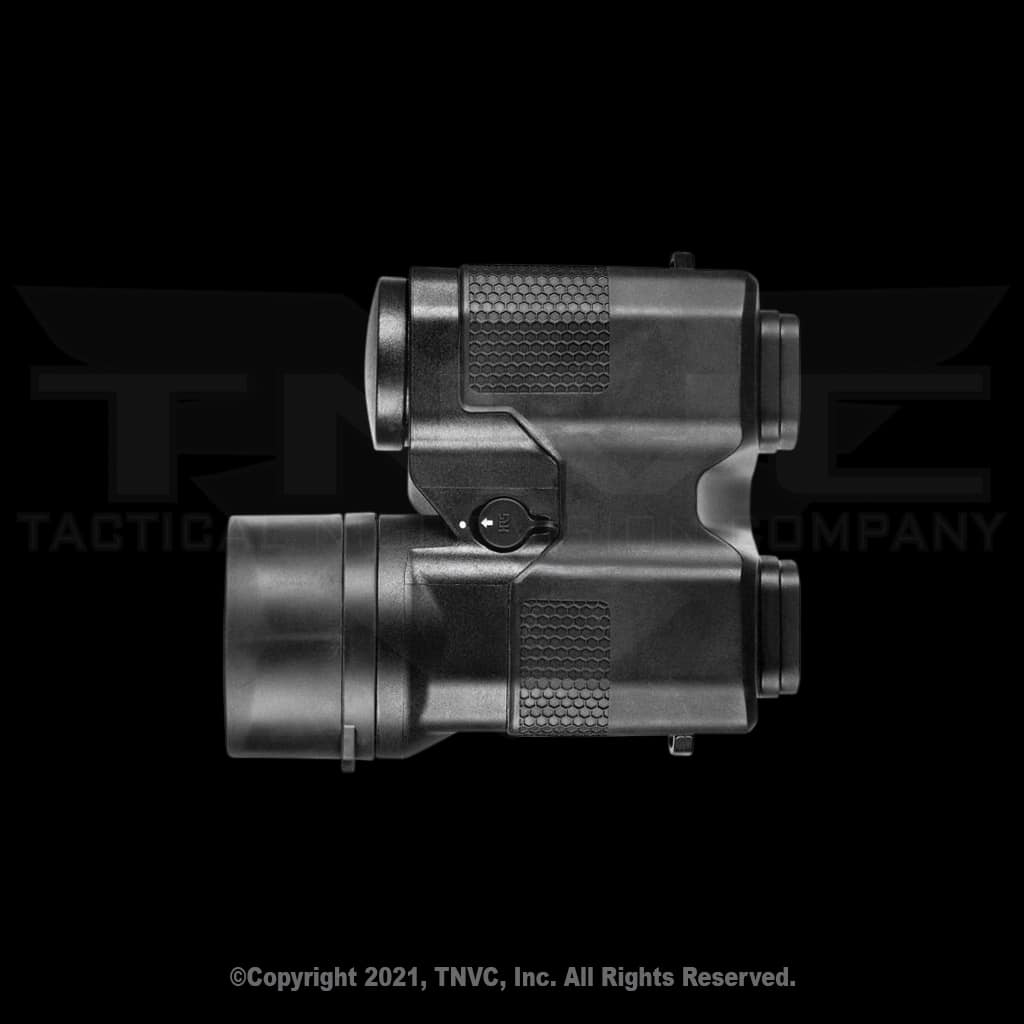

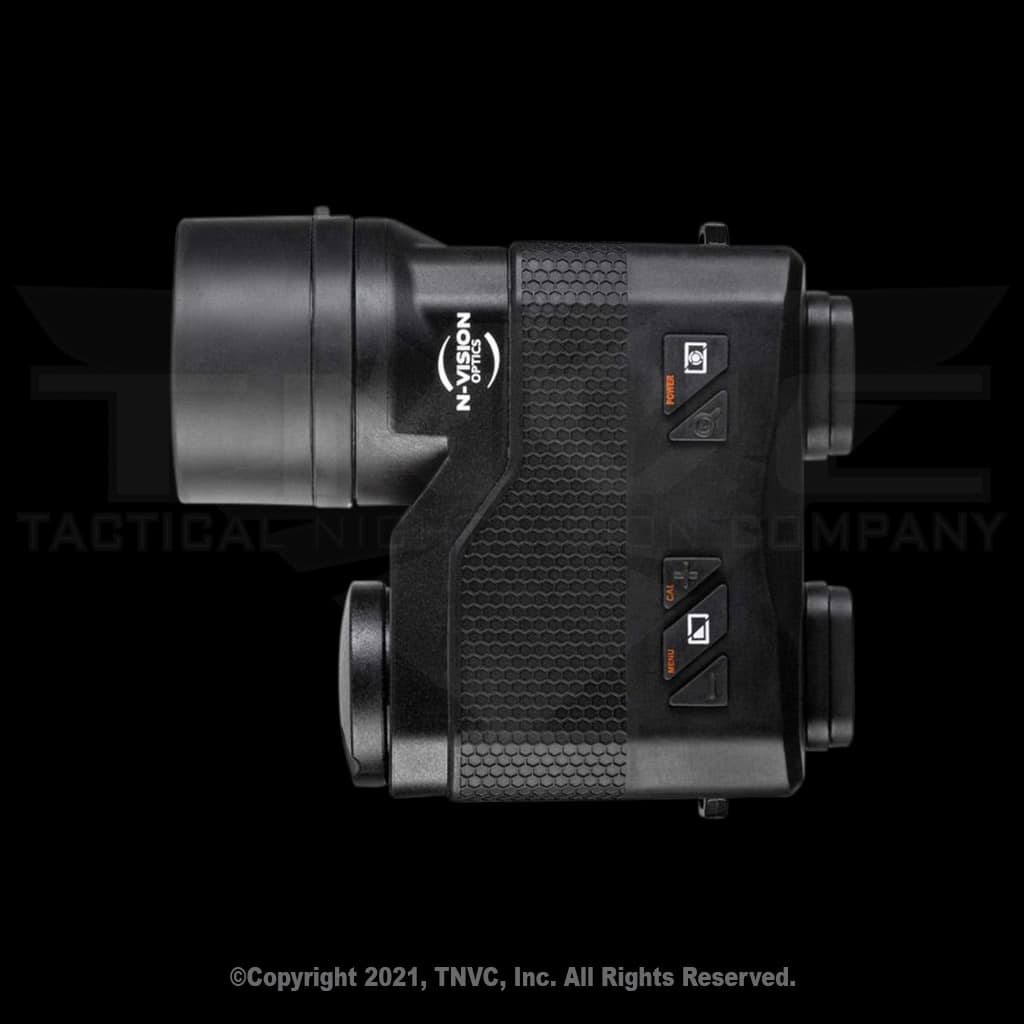

N-Vision Atlas 640 3.5-14x 50mm Thermal Binocular
$5,895.00
Out of Stock (Can be Backordered)
Description
The ATLAS is the first commercially available thermal binocular based on 12-micron technology. Lightweight and fully waterproof, the N-Vision Optics ATLAS Thermal Binocular is extremely robust and capable. ATLAS has a long-lasting battery life, is water proof, floats, and is built with Anti-reflective (AR) coated high speed (F1.2) Germanium optics. Be confident that you will locate and identify what it is you seek with the best equipment in the field. The Atlas will detect a man size object at over 1.25 miles. It includes a 640×480, 12 micron sensor, with industry leading 60Hz refresh rate. ATLAS provides 2x and 4x digital zoom capability inside a durable, no-slip rubberized housing. ATLAS is built for the outdoors. The Atlas has 4 different polarity viewing modes: Black Hot, White Hot, Color Pallet, and our unique Edge Detect mode not found in any other commercially available thermal binocular. The Atlas is Ideal for a wide variety of uses including hunting, search and rescue operations, wildlife observation, and surveillance.
Features:
- 640×480 resolution, 12µm pixel pitch core
- 1.25 mile detection range on human sized targets
- 3.5x Base Magnification
- 1x, 2x and 4x Digital Zoom
- 9° x 7° Degree Field of View
- Internal memory for image capture
- 60HZ Refresh Rate
- Black hot/white hot/color/edge detect
Specifications:
Microbolometer Resolution, pixels 640×480
|
Pixel Pitch, µm 12
|
Frame Rate, Hz 60
|
Magnification 3.5-14
|
Digital Zoom 1x / 2x / 4x
|
Lens Focus, mm 50
|
Spectral Sensitivity, µm 7.5-13.5
|
Relative aperture, D/f' 1:1.2
|
Field of View, degrees 9° x 7°
|
Battery Type 3 x CR123
|
Operating Temperature -40F to 122F
|
Weight 20.28 ounces
|
Length 5.86″
|
Physical & operational characteristics, Width 4.91″
|
Height 2.4″/span>
|
Warranty 5 Years/span>
|
Gallery
Additional information
Weight | 7.6 lbs |
---|---|
Dimensions | 14 × 14 × 12 in |
