Armasight Sidekick 640

Description

The Sidekick 640 is the smallest fully multi-functional 12-micron 640 thermal imaging monocular on the market. This unit boasts a fast 60Hz frame rate for smooth operation and industry-best, outstanding visual acuity, based on Armasight’s Iron Wolf thermal technology platform.

The detector / thermal core is the ArmaCORE 640 x 480, 12um, and 60 Hz. The The objective lens is 19mm with manual focus and the native optical magnification is 1x with 1-4x digital zoom. The Sidekick is powered by a single CR123A including rechargeable and can use 2x CR123A or a 16650 with the included battery extender (16650 not included), and has a USB-C port for remote power capability using a USB battery pack.

The high definition 1024×768 OLED display provides a crisp image, with iconography providing key information. The Sidekick utilizes simplified 3 button controls that allow for easy manipulation in the field and offers one-touch in-unit video recording to capture all of your experiences.

Weighing under 250 grams, the Sidekick 640 can be used as a handheld mini-monocular or can be head/helmet mounted utilizing the built-in mini- rail for hands-free operation.

The Sidekick 640 also has the ability to shift the thermal image to collimate the Sidekick's image with a bridged PVS-14. The Rayvn Group LLC Rayvn Rail is recommended for bridge mounting the Sidekick 640 with a PVS-14. There is no need to purchase any additional arm accessories for use with the Rayvn Rail (a dovetail helmet mount such as the Wilcox G24 is required). The Noisefighters Panobridge is also compatible however Noisefighters Mini-Rail Arm must be purchased separately from Noisefighters.

Rayvn Rail available here

Panobridge M1 available here

The Noisefighters RMAX14 or MRX-PRO arm are recommended for helmet mounting the Sidekick 320 by itself for use helmet mounted (a dovetail helmet such as the Wilcox G24 is required).

RMAX14 available here

MRX-PRO available here

Features

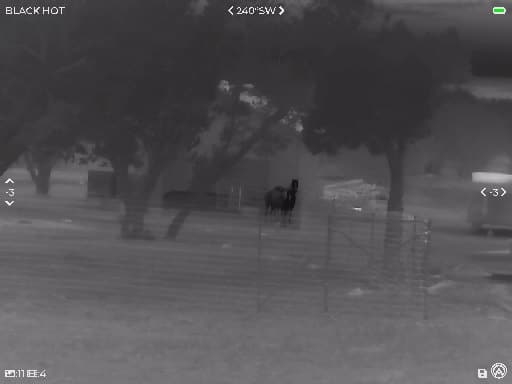

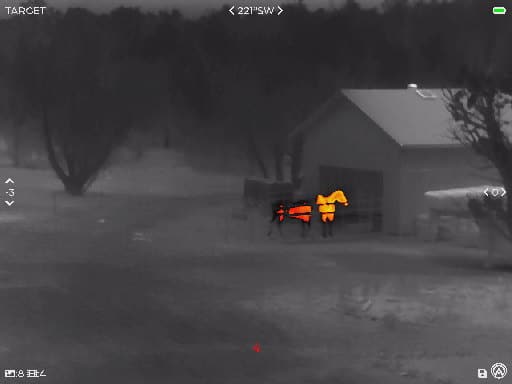

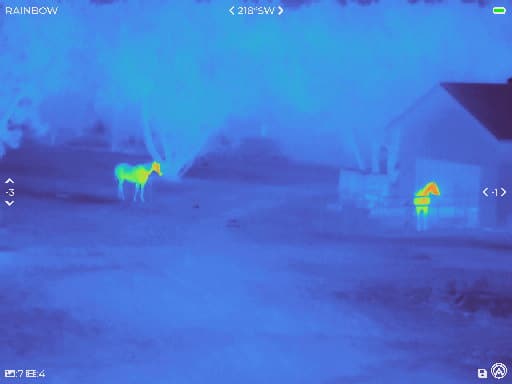

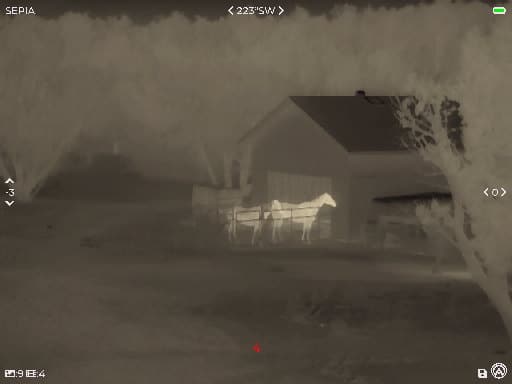

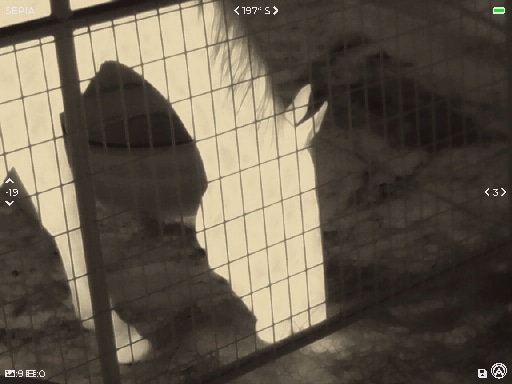

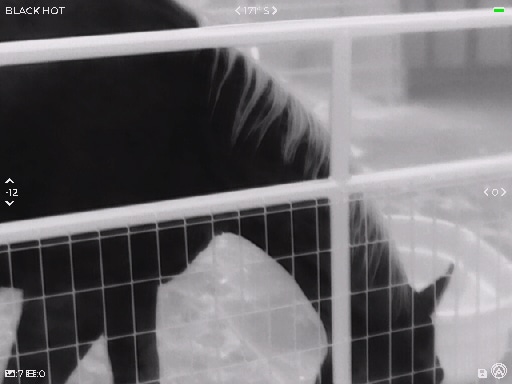

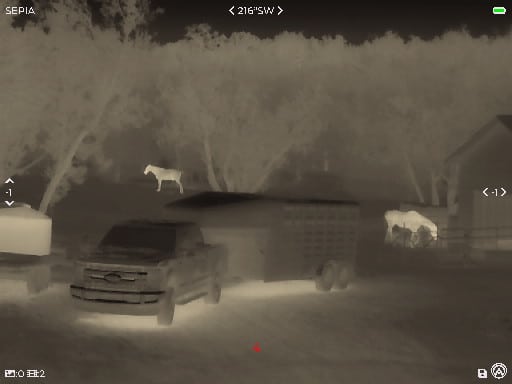

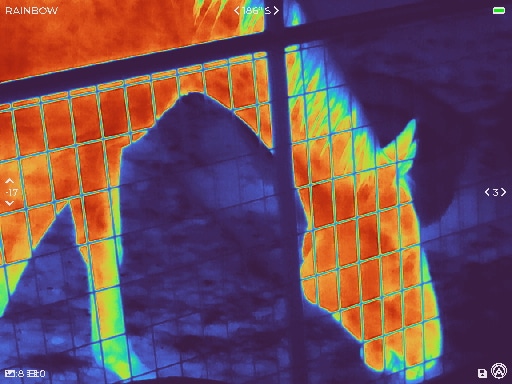

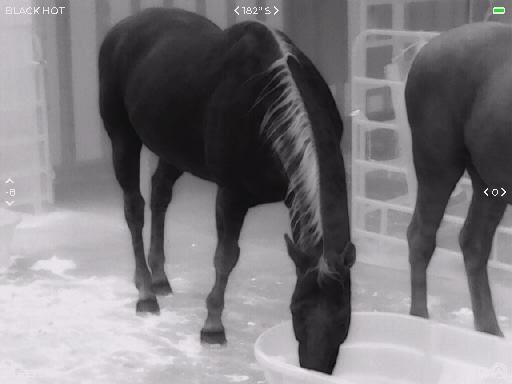

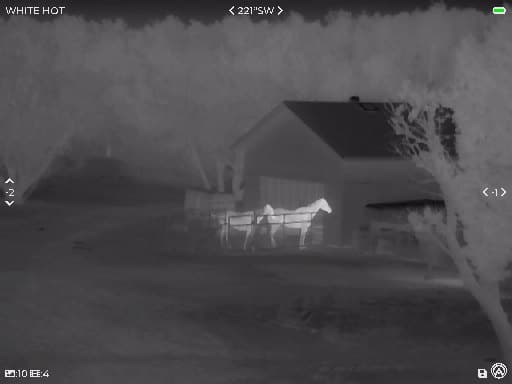

• Multiple color palettes
• Intuitive 3-button control
• 1.5 hour runtime on 1x CR123A battery, 5.5 hours on 2x with included battery extender
• Image Detail Enhancement
• Dovetail Mini-Rail Included for Helmet Mounting (with optional mount)
• Video Recording & Image Capture
• USB Video Stream
• USB-C Interface for External Devices
• Compass
• Battery Status Indicator
• ULTEM Composite Body and Ergonomic Design
• Designed and Assembled in the USA from U.S. and global components

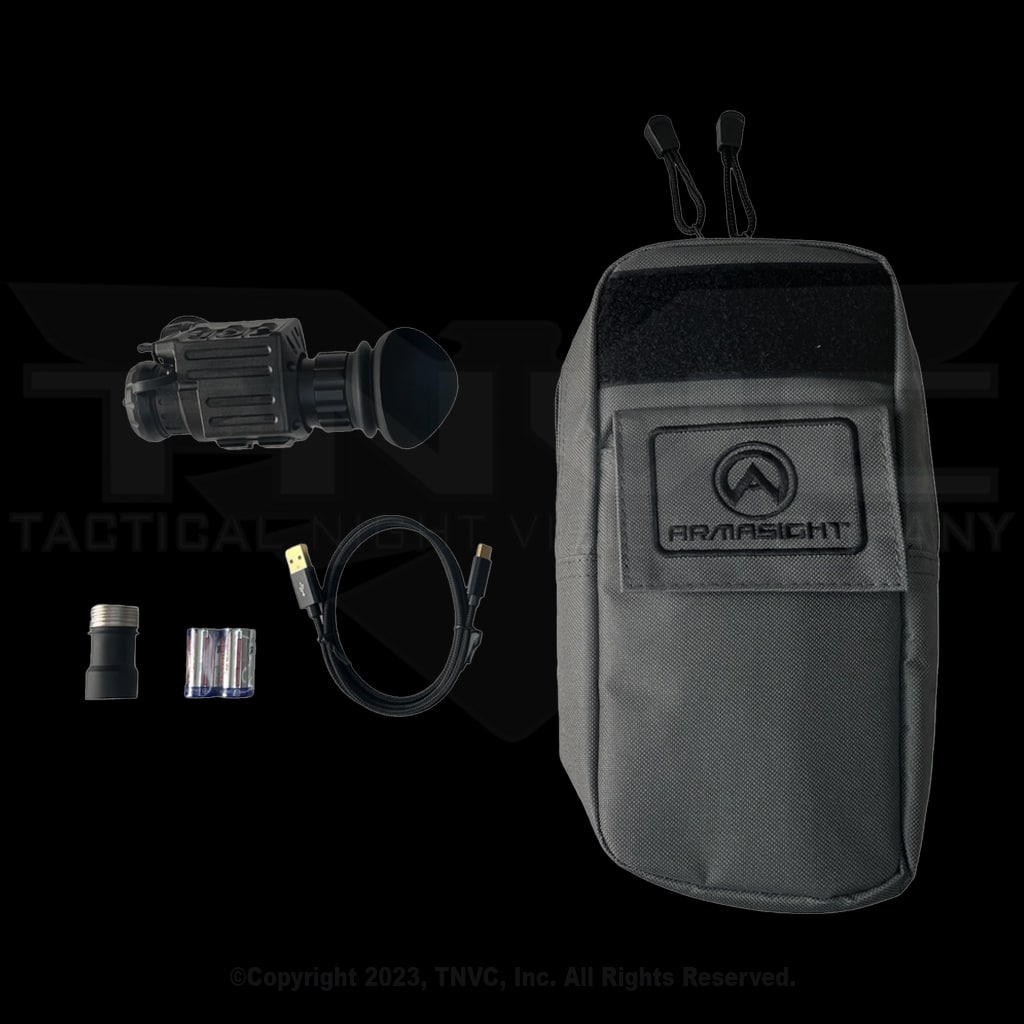

Package Includes

• Sidekick 640 Mini Thermal Monocular
• 2 x CR123A Battery
• USB-C Cable
• Lens Cloth
• Soft Case
• Product Manual
